CNC milling-cutting flying saw

Categories: Contor NewsStars: 3Stars Visit: - Release time: 2019-03-22 13:14:00
RSS subscription Font size:【 Large Middle Small Source: contor Editor: wang Author: wang

The CNC milling-cutting flying saw independently developed by Shenyang CONTOR is used to cut the continuous round pipe or square pipe produced by the welding production line into steel pipes of specific length. The steel pipe is cut into fixed lengths by two milling cutter disc cutting heads, and two milling heads are operated along the outer contour of the pipe, and two saw blades are used for sawing.The two blade flying saw cart is driven by the servo motor through gears and racks. The continuous production of the steel pipe is measured by the incremental encoder. The length measuring device is installed on the unit, the length measuring roller is in contact with the steel pipe, and the measured value is transmitted to the numerical control system.

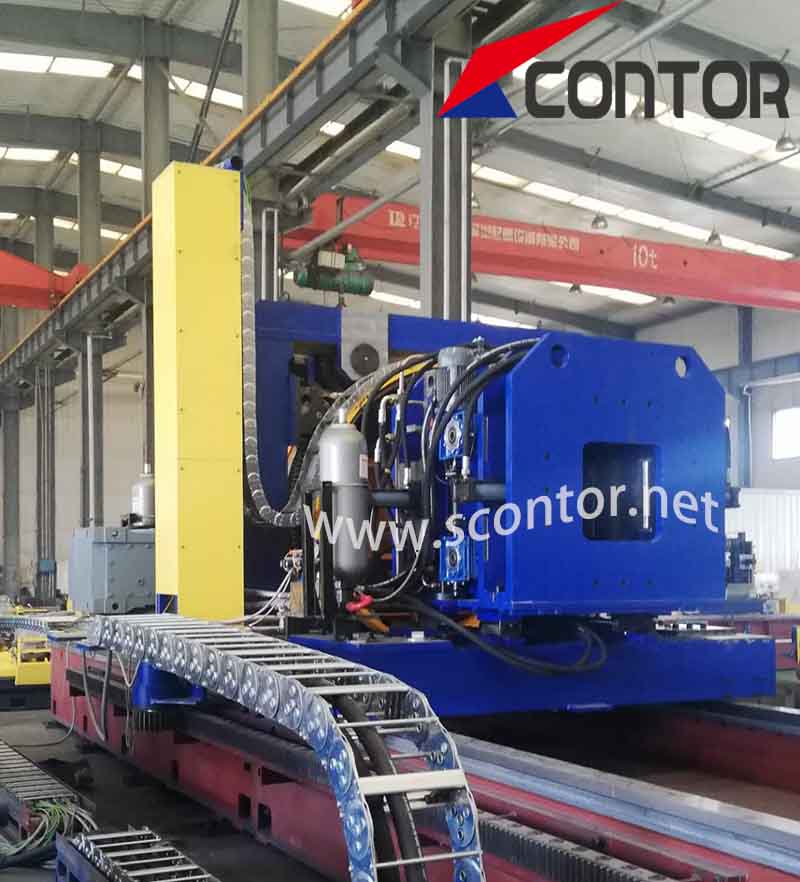

CNC milling-cutting flying saw

The numerical control system calculates the starting point, acceleration curve, deceleration curve, maximum return speed of the cart, and displays the running curve of the cart to make the system in optimal operation. The position and speed on the cart are also measured by an incremental encoder, mounted on the drive motor of the cart and transmitted to the CNC. The control system combines motion control and drive with a highly integrated simotion D. The system has an extremely fast response speed and improves machine performance. There are no compatibility issues. This system is Siemens' current control system in the field of motion control.The system now has a production record reading function, and Industrial Ethernet can directly access the office network. Connect the field data to the boss's office computer.  Please contact us for details.

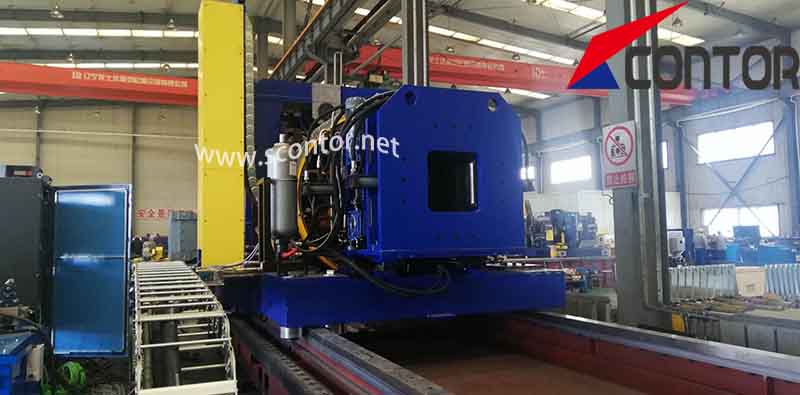

Two Blade flying saw
