Product Name：Milling type flying cutoff
- Product Category：
- Product Details：
- E-MAIL:
-

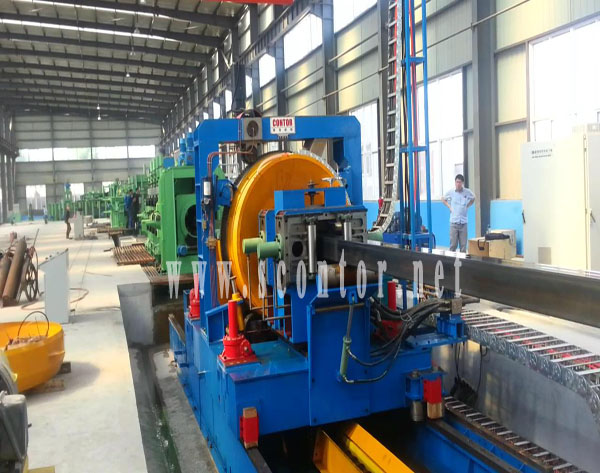

We developed the milling type flying cutoff machine by ourselves. It is a type of high precision cutting machine for big size diameter steel pipe. The machine catches the step with the word’s developing speed in the field.
The cutting machine adopts 2 blades cutting and 2 coordinate axes interlock controlling technology, which made no burrs, low noise and excellent cutting edge. The milling type flying cutoff is suitable for big size pipe cutting.
（feature）：
two blade rotation cold cutting
Auto control (Manual operation is ok)
LCD touch screen HM
High speed and precision
No burrs, saving work of the process of deburring and dedimpling
Low failure rate, easy maintenance, long life
application：round pipe、square pipe 、rectangle pipe、 open cold bend steel
material：Q235-345，J55，X42-80，N80
|
Model |
size(mm) |
thickness(mm) |
length(m) |
precision(mm) |
speed(m/min) |
|
CTFX165 |
ф60-ф165 |
2.5-7.0 |
5-12 |
≤±3 |
Max.50 |
|
CTFX219 |
ф89-ф219 |
3.5-7.0 |
6-12 |
≤±3 |
Max.40 |
|
CTFX273 |
ф114-ф273 |
4.0-10.0 |
6-12 |
≤±3 |
Max.40 |
|
CTFX325 |
ф165-ф325 |
5.0-12.7- |
6-12 |
≤±3 |
Max.35 |
|
CTFX377 |
ф165-ф377 |
5.0-12.7 |
6-15 |
≤±3 |
Max.35 |
|
CTFX406 |
ф165-ф406 |
5.0-14.0 |
6-15 |
≤±3 |
Max.35 |
|
CTFX426 |
ф165-ф426 |
5.0-16.0 |
6-15 |
≤±3 |
Max.35 |
|
CTFX508 |
ф165-ф508 |
5.0-16.0 |
6-18 |
≤±3 |
Max.35 |
|
CTFX630 |
ф219-ф630 |
6.0-16.0 |
6-18 |
≤±3 |
Max.30 |
|
CTFX660 |
ф219-ф660 |
8.0-22.0 |
6-18 |
≤±3 |
Max.30 |
