Two Blade Cold saw Feature

Categories: Contor NewsStars: 3Stars Visit: - Release time: 2019-03-31 10:56:00
RSS subscription Font size:【 Large Middle Small Source: contor Editor: Jason Author: Jason

Mechanical system advantages:two blade cold saw has a national patent for precision copy milling saw.the sawing form is polar coordinate, which reduces the weight of the trolley, and saws the large gear transmission, which can fully exert the torque of the motor. The short distance between the two sides of the large plate is beneficial to the cutting stability of the saw blade and the life of the saw blade and the quality of the cutting section.dual motor precision control, large gear running.

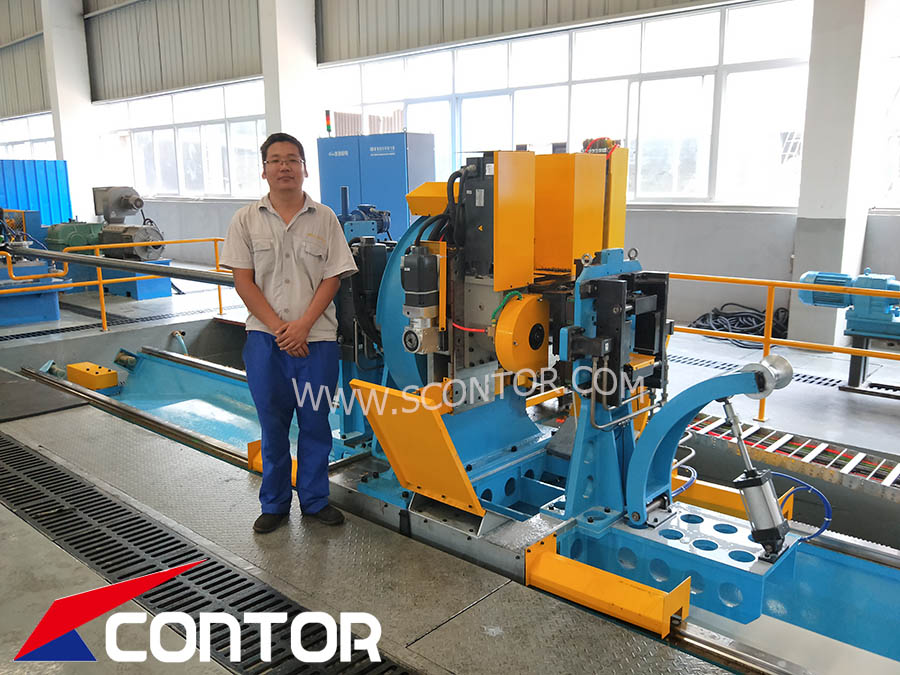

dual blade cold saw

Reduce the gear clearance, the saw blade cutting is more stable during the fast cutting process, and the saw blade life is improved.the feed system uses precision ball screw and linear guide mechanism to accurately perform servo system control, and the sawing is more stable. An automatic lubrication system is included to ensure the life of the components.within a certain square tube diameter range, a set of fixtures have versatility, reduce the workload required to replace the fixture due to the replacement of the tube type, the fixture uses a double-action structure to reduce the friction between the clamp and the pipe, to ensure the pipe surface quality. milling center height adjustment using servo motor control lift, to achieve precise positioning, easy to use, automatic lifting adjustment, one-button positioning, convenient for the next busbar positioning production line.Optimized the sawing drive, the sawing and dragging mechanism is installed on the sawing table, improving the transmission precision and walking stability, ensuring accurate accuracy of the fixed length, and protecting the running motor.

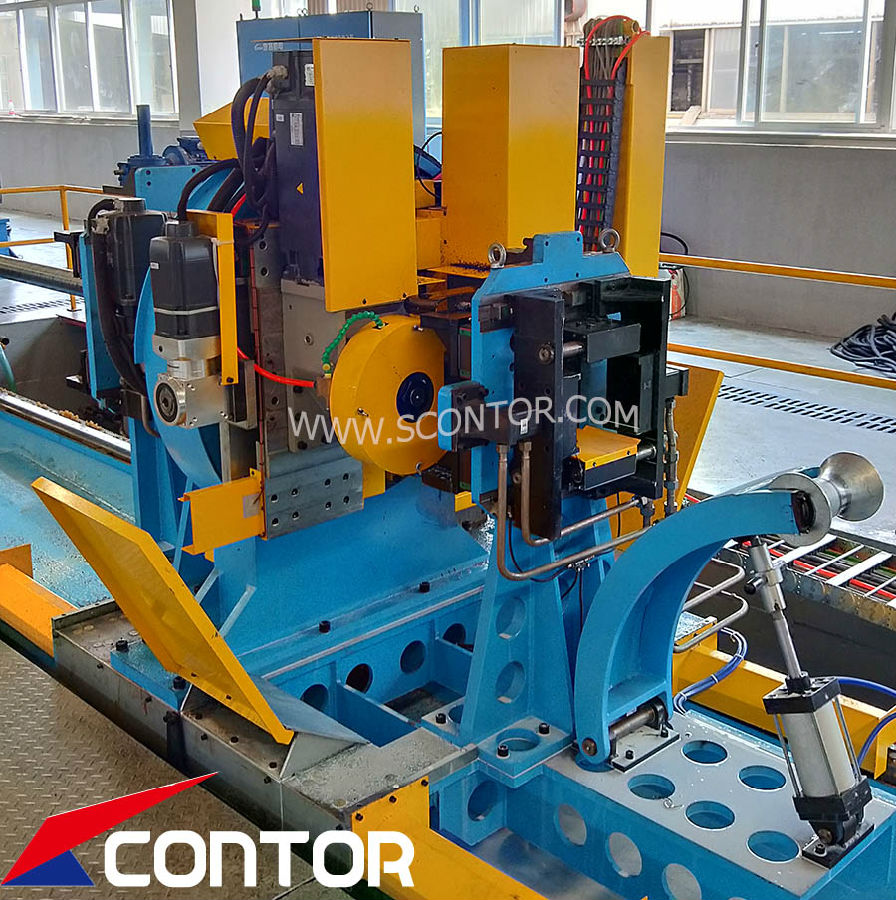

two blade cold saw



Keywords in the article: two blade cold saw dual blade cold saw
