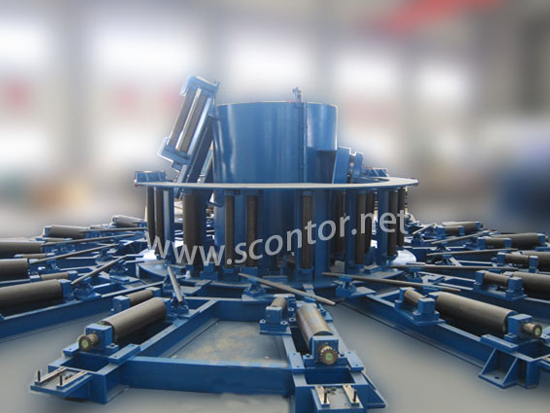

The Horizontal Spiral Accumulator

1.Big storage & little damage of the strip surface.

2.High speed feeding.

3.Time is free for feeding with small deformation of strip.

4.Improve the welded pipe quality, forming machine and rollers' life.

5.Suitablefor any size pipe line.

inquiry

Product Detail

This is an old video which is taken in 2014, just upload now. Since we just manufacturing big size pipe tube mill accumulator, the minimum size is OD 165 mm. Now, We specialized in manufacturing cold saw now. No friction saw, no small size entry machine.

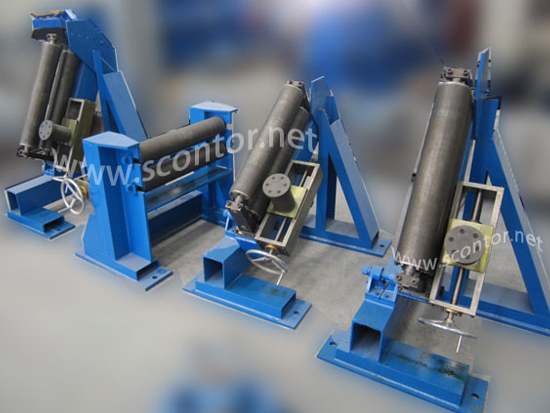

The tube mill accumulator is a strip storing unit in the longitudinally welded pipe and formed section production. It can store a number of steel strip, Which can make the pipe line no-stop working with supplying enough time for the fore roll steel strip tail connect with the head of the followed strip roll. The accumulator consists of the entry leading equipment, feeding and driving equipment, in and out roller cage, center roller and the exit leading equipment. Application：Round pipe、Square pipe、rectangle pipeOpening cold bend steel. Material：Q235-345、J55、K55、X42-80、N80

(Model)	width（mm）	thickness(mm)	store(m)	speed（m/min）	length（m）
CTHT32	40-120	0.6-1.6	400-600	Following rolling speed	7
CTHT50	60-200	0.9-2.0	400-700	Following rolling speed	10
CTHT76	100-260	1.2-3.5	400-700	Following rolling speed	14
CTHT114	120-400	2.0-6.0	400-800	Following rolling speed	18
CTHT165	160-520	2.5-7.0	400-800	Following rolling speed	20
CTHT219	240-700	3.5-7.0	400-900	Following rolling speed	28
CTHT273	320-900	4.0-10.0	400-900	Following rolling speed	38
CTHT325	500-1100	5.0-12.7	500-1000	Following rolling speed	45
CTHT406	600-1300	5.0-14.0	500-1000	Following rolling speed	45
CTHT508	700-1650	6.0-16.0	500-1200	Following rolling speed	57
CTHT610	900-2000	6.0-22.0	500-1200	Following rolling speed	60
