two blade flying saw

406 two blade flying saw

1.Double blade rotation cold cutting

2.Man-computer interface design

3.LCD touch screen

4.High speed & High precision cutting

5.Anti-jamming capability

6.Lower Machinery Malfunctionrate

7.Maintain easily & long life

8.Excellent cuting edge, no burrs & save costs

inquiry

Product Detail

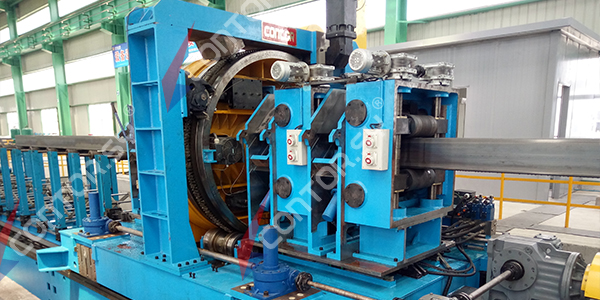

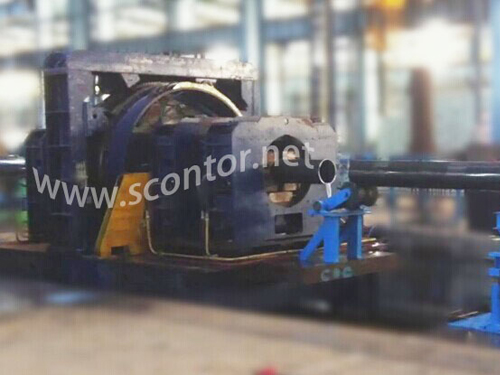

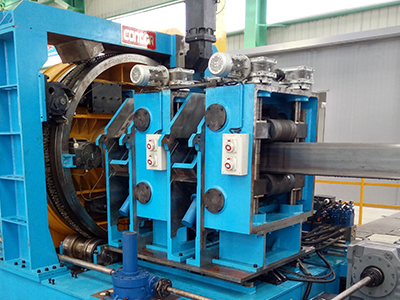

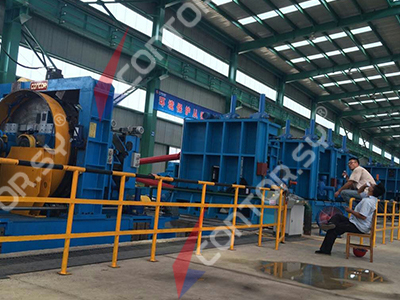

Contor teo blde flying saw machine for ERW pipline , advantage:High-tech equipment, realization of large-size high-speed cutting online. Adopts double blade Polar coordinate with two-axis motion control technology. No burrs, low noise and high-quality cutting. Suitable for medium and large diameter pipe with Thick-walled and high-strength. Square pipe and rectangular pipe cutting as well.

flying saw

Model	Size(mm)	Thickness(mm)	Length(m)	Precision(mm)	Speed(m/min)
CTFX165	Ф60-165	2.5-7.0	5-12	≤±3	max.50
CTFX219	Ф89-129	3.5-7.0	6-12	≤±3	max.40
CTFX273	Ф114-273	4.0-10.0	6-12	≤±3	max.40
CTFX325	Ф165-325	5.0-12.7	6-12	≤±3	max.35
CTFX377	Ф165-377	5.0-12.7	6-15	≤±3	max.35
CTFX406	Ф165-406	5.0-14.0	6-15	≤±3	max.35
CTFX426	Ф165-42	5.0-16.0	6-15	≤±3	max.35
CTFX508	Ф165-508	5.0-16.0	6-18	≤±3	max.35
CTFX630	Ф219-630	6.0-16.0	6-18	≤±3	max.30
CTFX660	Ф219-660	8.0-22.0	6-18	≤±3	max.30
